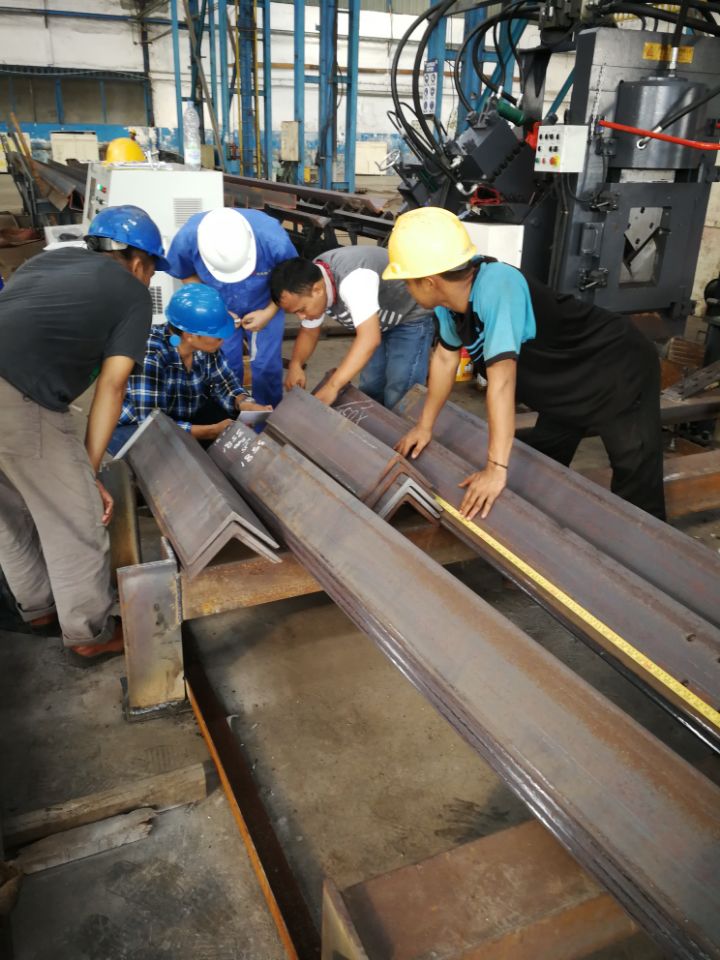

Applicable Industry:
This machine is used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
Product Feature:
1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2.Easy programming, adopt instruction programming and lofting software. It can read .NC1 files generated by TEKLA software.
3. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.
4. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.
5. Marking unit adopts closed frame with good rigidity. Four groups of character boxes are fixed on the marking unit which can be selected by program. Marking back mark can be set at will.
Advantages
Better than other manufacturers in reducing labor intensity of workers.
When programming, you only need to key in the size of the workpiece, hole diameter, collimation distance, number of workpieces, or use CAD/CAM to convert directly.
The machine is fitted with a palletizing and pressing device that is currently superior to those of other domestic manufacturers, and can accommodate angles with large bends.
Edge shear unit adopts door-type shear knife box, replacing the cutter is safe, convenient and quick.
It has the function of no-cutting, can process the fixed-foot material, and the function of self-diagnosis of failure.
Automatic stacking function can be added when the finished product is discharged (for user's choice).
机器型号
Machine model | JNC2020 |
机器功能
Machine function | 冲孔,打字,剪切
punching, marking, cutting |
加工角钢尺寸范围 (mm)
Processing angle steel size range (mm) | L63×63×4~L200×200×20 |
| 最大冲孔能力
Max. punching capacity | φ26×20(材质Q345 510N/mm² )
φ26×20(Material Q345 510N/mm²) |
每侧冲头数 (个)
Number of punches per side | 3 |
切断方式
Shearing mode | 双刃剪切(单刃剪切选配)
Double shearing(single shearing option) |
| 最大切断能力 Max. cutting capacity | L63×63×4~L200×200×20(材质Q345 510N/mm² ) L63×63×4~L200×200×20(Material Q345 510N/mm²) |
打字力 (KN)
marking force (KN) | 630 (1200选配)
630 (1200 optional) |
打印组数 (组)
Number of marking groups (groups) | 4 (8选配)
4 (8 optional) |
每组字头位数 (位)
character head number of each group | 12(18选配)
12 (18 optional) |
字头尺寸 (mm)
character head size (mm) | 14×10×19 |
最大毛坯角钢长度 (m)
Max. length of blank angle steel (m) | 14 |
最大成品角钢长度 (m)
Max. length of finished angle steel (m) | 14 |
加工精度
The machining accuracy | 满足GB2694的要求
meets the requirements of GB2694 |
角钢送进速度 (m/min)
Feeding speed of angle steel (M / min) | 50 |
外形尺寸 (mm)
Overall dimension (mm) | 32000×6500×2350 |
