Multifunction CNC Heating Angle Bending Machine Model HQ250 Angle Steel Tower
Applicable industry:
Heat bending also call fire bending , after the workpiece heated to a definite temperature of the bending process. It is used to bend angle of angle steel for Transmission tower & Communication tower & Microwave tower etc.
Features:
1. It adopts numerical control programmable controller, touch screen input information and status feedback, and the operation is simple.
2, Adopts intelligent super-audio induction heating, in order to improve production efficiency, reduce production costs while ensuring the company's working environment.
3, Multi-purpose machine, does not need to be equipped with other tooling molds.
4, CNC control, to ensure the molding angle of the workpiece, to ensure product quality and improve production efficiency.
5.With independent hydraulic system and electrical control system, the operation is simple and convenient, the performance is safe and reliable, and the production efficiency is high.
Parameter:
| No. | Model | GHQ250～700 |
| 1 | Oil Tank Pressure (kN) | 1600 |
| 2 | Processing Angle Range (mm) Heel up (outside double-sided bending) | L80*7～L250*32 |
| 3 | Outward double-sided bending degree for angles (°) | 30° |
| 4 | Processing Angle Range (mm) Compression (inner single side bending) | L80*7～L200*18 |
| 5 | Inner single side bending degree for angles (°) | 20° |
| 6 | Processing Angle Range (mm) Tension (outward single side bending) | L80*7～L200*18 |
| 7 | Outward single side bending degree for angles (°) | 16° |
| 8 | Bending Plate thickness (mm) | 2～16 |
| 9 | Bending Plate width (mm) | 700 |
| 10 | Bending degree for plates (°) | 90° |
| 11 | Angle opening & closing range (mm) | L80*7～L200*16 |
| 12 | Angle opening & closing degree (°) | 16° |
| 13 | Oil Tank Stroke (mm) | 800 |
| 14 | Motor Power (kW) | 15 |
| 15 | Heating power (kW) | 80*2 |
| 16 | NC Axis | 3 |
| 17 | Cooling water tank (m³) | 8 |
| 18 | Cooling water flow (m³/h) | 50 |
| 19 | Oil tank capacity (L) | 630 |
| 20 | Weight (T) | About10 |
| 21 | Overall size (mm) | 3500*4500*4100 |
Product Tags:
|
|

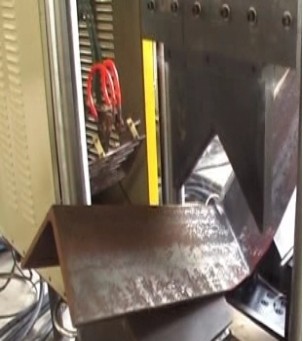

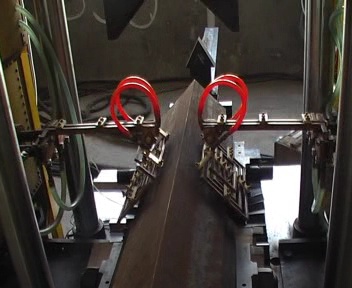

Multifunction CNC Heating Angle Bending Machine Model HQ250 Angle Steel Tower Images
|
